LDR/A 軸向锁紧螺母
更新：2013-12-2 19:21:07 点击：
- 产品品牌 LDR
- 产品型号 LDR/A
- 产品描述
上海联点精密机械有限公司主要生产：螺母，锁紧螺母，轴向锁紧螺母,胀套，胀紧套，胀紧联结套，涨套，涨紧套，涨紧联结套，紧定套，退卸套，锁紧螺母，联轴器，伸缩万向节,十字万向节,精密小型十字万向节,精密可...
产品介绍
LDR/A 軸向锁紧系列

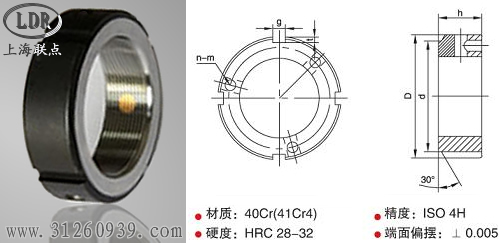

LDR/A型鎖緊方式为轴向三点式锁定，其厚度与F系列相同，轴向三点式锁定为其特点，适用于装配工作的特殊环境限制。
材質：42CrMo
硬度：HRC28°- 32°
螺紋精度：ISO6H
平面偏擺：0.005mm
|
Thread
|
D
|
h
|
g
|
t
|
d
|
d2
|
d3
|
c
|
n-m
|
MAX.Nm
|
螺钉(MxL)
|
铜芯(￠xL)
|
|
LDR/A M14x1.5
|
30
|
14
|
4
|
2
|
26
|
22
|
3.3
|
9
|
2-M4
|
3.5
|
M4x8.5
|
3.3x5.4
|
|
LDR/A M15x1
|
30
|
14
|
4
|
2
|
26
|
22.5
|
3.3
|
9
|
2-M4
|
3.5
|
M4x8.5
|
3.3x5
|
|
LDR/A M16x1.5
|
30
|
14
|
4
|
2
|
26
|
23
|
3.3
|
9
|
2-M4
|
3.5
|
M4x8.5
|
3.3x4.9
|
|
LDR/A M17x1
|
32
|
16
|
4
|
2
|
28
|
24.5
|
3.3
|
10
|
2-M4
|
3.5
|
M4x9.5
|
3.3x5
|
|
LDR/A M18x1.5
|
32
|
16
|
4
|
2
|
28
|
25
|
3.3
|
10
|
3-M4
|
3.5
|
M4x9.5
|
3.3x4.9
|
|
LDR/A M20x1
|
38
|
16
|
4
|
2
|
34
|
29
|
3.3
|
10
|
3-M4
|
3.5
|
M4x9.5
|
3.3x5.7
|
|
LDR/A M20x1.5
|
38
|
16
|
4
|
2
|
34
|
29
|
3.3
|
10
|
3-M4
|
3.5
|
M4x9.5
|
3.3x5.9
|
|
LDR/A M22x1.5
|
38
|
16
|
4
|
2
|
34
|
30
|
3.3
|
10
|
3-M4
|
3.5
|
M4x9.5
|
3.3x5.4
|
|
LDR/A M24x1.5
|
38
|
18
|
5
|
2
|
34
|
31
|
3.3
|
11
|
3-M4
|
3.5
|
M4x10.5
|
3.3x4.9
|
|
LDR/A M25x1.5
|
38
|
18
|
5
|
2
|
34
|
31.5
|
3.3
|
11
|
3-M4
|
3.5
|
M4x10.5
|
3.3x4.6
|
|
LDR/A M27x1.5
|
40
|
18
|
5
|
2
|
36
|
33
|
3.3
|
11
|
3-M4
|
3.5
|
M4x10.5
|
3.3x4.4
|
|
LDR/A M30x1.5
|
45
|
18
|
5
|
2
|
41
|
37.5
|
3.3
|
11
|
3-M4
|
3.5
|
M4x10.5
|
3.3x5.1
|
|
LDR/A M33x1.5
|
50
|
18
|
5
|
2
|
46
|
41.5
|
3.3
|
11
|
3-M4
|
3.5
|
M4x10.5
|
3.3x5.6
|
|
LDR/A M35x1.5
|
52
|
18
|
5
|
2
|
48
|
43.5
|
5
|
11
|
3-M6
|
8
|
M6x10.5
|
5x5.7
|
|
LDR/A M36x1.5
|
52
|
18
|
5
|
2
|
48
|
44
|
5
|
11
|
3-M6
|
8
|
M6x10.5
|
5x5.4
|
|
LDR/A M39x1.5
|
58
|
20
|
6
|
2.5
|
53
|
48.5
|
5
|
12
|
3-M6
|
8
|
M6x11.5
|
5x6.2
|
|
LDR/A M40x1.5
|
58
|
20
|
6
|
2.5
|
53
|
49
|
5
|
12
|
3-M6
|
8
|
M6x11.5
|
5x6
|
|
LDR/A M42x1.5
|
62
|
20
|
6
|
2.5
|
57
|
52
|
5
|
12
|
3-M6
|
8
|
M6x11.5
|
5x6.4
|
|
LDR/A M45x1.5
|
65
|
20
|
6
|
2.5
|
60
|
55
|
5
|
12
|
3-M6
|
8
|
M6x11.5
|
5x6.5
|
|
LDR/A M48x1.5
|
70
|
20
|
6
|
2.5
|
65
|
59
|
5
|
12
|
3-M6
|
8
|
M6x11.5
|
5x6.9
|
|
LDR/A M50x1.5
|
70
|
20
|
6
|
2.5
|
65
|
60
|
5
|
12
|
3-M6
|
8
|
M6x11.5
|
5x6.5
|
|
LDR/A M50x2
|
70
|
20
|
6
|
2.5
|
65
|
60
|
5
|
12
|
3-M6
|
8
|
M6x11.5
|
5x6.7
|
|
LDR/A M52x1.5
|
73
|
22
|
7
|
3
|
67
|
62
|
5
|
12
|
3-M6
|
8
|
M6x11.5
|
5x6.5
|
|
LDR/A M55x2
|
75
|
22
|
7
|
3
|
69
|
65
|
5
|
13
|
3-M6
|
8
|
M6x12.5
|
5x6.7
|
|
LDR/A M56x2
|
75
|
22
|
7
|
3
|
69
|
65.5
|
5
|
13
|
3-M6
|
8
|
M6x12.5
|
5x6.3
|
|
LDR/A M60x2
|
80
|
22
|
7
|
3
|
74
|
70
|
5
|
13
|
3-M6
|
8
|
M6x12.5
|
5x6.7
|
|
LDR/A M64x2
|
85
|
22
|
7
|
3
|
79
|
74.5
|
5
|
13
|
3-M6
|
8
|
M6x12.5
|
5x6.8
|
|
LDR/A M65x2
|
85
|
22
|
7
|
3
|
79
|
75
|
5
|
13
|
3-M6
|
8
|
M6x12.5
|
5x6.6
|
|
LDR/A M68x2
|
92
|
24
|
8
|
3.5
|
85
|
80
|
6.2
|
14
|
3-M8
|
18
|
M8x13
|
6.2x7.7
|
|
LDR/A M70x2
|
92
|
24
|
8
|
3.5
|
85
|
81
|
6.2
|
14
|
3-M8
|
18
|
M8x13
|
6.2x7.2
|
|
LDR/A M72x2
|
94
|
24
|
8
|
3.5
|
87
|
83
|
6.2
|
14
|
3-M8
|
18
|
M8x13
|
6.2x7.1
|
|
LDR/A M75x2
|
98
|
24
|
8
|
3.5
|
91
|
86.5
|
6.2
|
14
|
3-M8
|
18
|
M8x13
|
6.2x7.4
|
|
LDR/A M76x2
|
98
|
24
|
8
|
3.5
|
91
|
87
|
6.2
|
14
|
3-M8
|
18
|
M8x13
|
6.2x7.1
|
|
LDR/A M80x2
|
105
|
24
|
8
|
3.5
|
98
|
93
|
6.2
|
14
|
3-M8
|
18
|
M8x13
|
6.2x8.2
|
|
LDR/A M85x2
|
110
|
24
|
8
|
3.5
|
103
|
97.5
|
6.2
|
14
|
3-M8
|
18
|
M8x13
|
6.2x7.9
|
|
LDR/A M90x2
|
120
|
26
|
10
|
4
|
112
|
105
|
6.2
|
15
|
3-M8
|
18
|
M8x14
|
6.2x9.1
|
|
LDR/A M95x2
|
125
|
26
|
10
|
4
|
117
|
110
|
6.2
|
15
|
3-M8
|
18
|
M8x14
|
6.2x9.2
|
|
LDR/A M100x2
|
130
|
26
|
10
|
4
|
122
|
115
|
6.2
|
15
|
3-M8
|
18
|
M8x14
|
6.2x9.2
|
|
LDR/A M105x2
|
140
|
28
|
12
|
5
|
130
|
123
|
6.2
|
16
|
3-M8
|
18
|
M8x15
|
6.2x10.7
|
|
LDR/A M110x2
|
145
|
28
|
12
|
5
|
135
|
127.5
|
6.2
|
16
|
3-M8
|
18
|
M8x15
|
6.2x10.4
|
|
LDR/A M115x2
|
150
|
28
|
12
|
5
|
140
|
132.5
|
6.2
|
16
|
3-M8
|
18
|
M8x15
|
6.2x10.4
|
|
LDR/A M120x2
|
155
|
30
|
12
|
5
|
145
|
138
|
6.2
|
17
|
3-M8
|
18
|
M8x16
|
6.2x10.7
|
|
LDR/A M125x2
|
160
|
30
|
12
|
5
|
150
|
142.5
|
6.2
|
17
|
3-M8
|
18
|
M8x16
|
6.2x10.3
|
|
LDR/A M130x2
|
165
|
30
|
12
|
5
|
155
|
147.5
|
6.2
|
17
|
3-M8
|
18
|
M8x16
|
6.2x10.3
|
|
LDR/A M135x2
|
175
|
32
|
14
|
6
|
163
|
155
|
7.9
|
17
|
3-M10
|
35
|
M10x15.5
|
7.9x11.6
|
|
LDR/A M140x2
|
180
|
32
|
14
|
6
|
168
|
160
|
7.9
|
18
|
3-M10
|
35
|
M10x16.5
|
7.9x11.6
|
|
LDR/A M145x2
|
190
|
32
|
14
|
6
|
178
|
167.5
|
7.9
|
18
|
3-M10
|
35
|
M10x16.5
|
7.9x12.8
|
|
LDR/A M150x2
|
195
|
32
|
14
|
6
|
183
|
173
|
7.9
|
18
|
3-M10
|
35
|
M10x16.5
|
7.9x13.2
|
|
LDR/A M155x3
|
200
|
34
|
16
|
7
|
186
|
177.5
|
7.9
|
18
|
3-M10
|
35
|
M10x16.5
|
7.9x13.3
|
|
LDR/A M160x3
|
210
|
34
|
16
|
7
|
196
|
185
|
7.9
|
19
|
3-M10
|
35
|
M10x17.5
|
7.9x14.5
|
|
LDR/A M165x3
|
210
|
34
|
16
|
7
|
196
|
187.5
|
7.9
|
19
|
3-M10
|
35
|
M10x17.5
|
7.9x13.3
|
|
LDR/A M170x3
|
220
|
34
|
16
|
7
|
206
|
195
|
7.9
|
19
|
3-M10
|
35
|
M10x17.5
|
7.9x14.5
|
|
LDR/A M180x3
|
230
|
36
|
18
|
8
|
214
|
205
|
9.6
|
20
|
3-M12
|
60
|
M12x18
|
9.6x14.5
|
|
LDR/A M190x3
|
240
|
36
|
18
|
8
|
224
|
215
|
9.6
|
20
|
3-M12
|
60
|
M12x18
|
9.6x14.5
|
|
LDR/A M200x3
|
250
|
38
|
18
|
8
|
234
|
225
|
9.6
|
21
|
3-M12
|
60
|
M12x19
|
9.6x14.5
|
